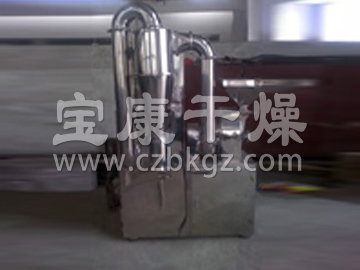

ZF-type Chinese herb grinding unit

keywords: ZF-type Chinese herb grinding unit
Overview: Features:This machine is beautiful, elegant, novel and elegant. The machine is precision-manufactured with stainless steel inside and outside. The machine uses a fixed cutter head and movable hammer to move relative to each other, so that the object c…
Detail Images Video
Features:

 This machine is beautiful, elegant, novel and elegant. The machine is precision-manufactured with stainless steel inside and outside. The machine uses a fixed cutter head and movable hammer to move relative to each other, so that the object can be quickly gained and crushed within the machine control. The crushed material is used in a rotary centrifugal force and automatically enters the trapping bag. The dust is filtered and collected by the vacuum bag. The machine is designed according to the "GMP" standard and there is no dust flying in the production process. And can improve the utilization of materials, reduce business costs, has reached the international advanced level. This device does not produce temperature, can crush a variety of heat-sensitive materials.

Technical Parameters:

model 300型 400型 500型
Production capacity(kg/h) 40-120 60-150 100-200
Spindle speed(r/min) 4500 3800 3400
Feed particle size(mm) 6 6 6
Smashing fineness(目) 80-350 80-350 80-350
Smash motor(kw) 11 11 13
Vacuum motor(kw) 3 3 5.5
Lay size (length×width×height)(mm) 1100×700×1650 1100×750×1600 1350×800×1700
